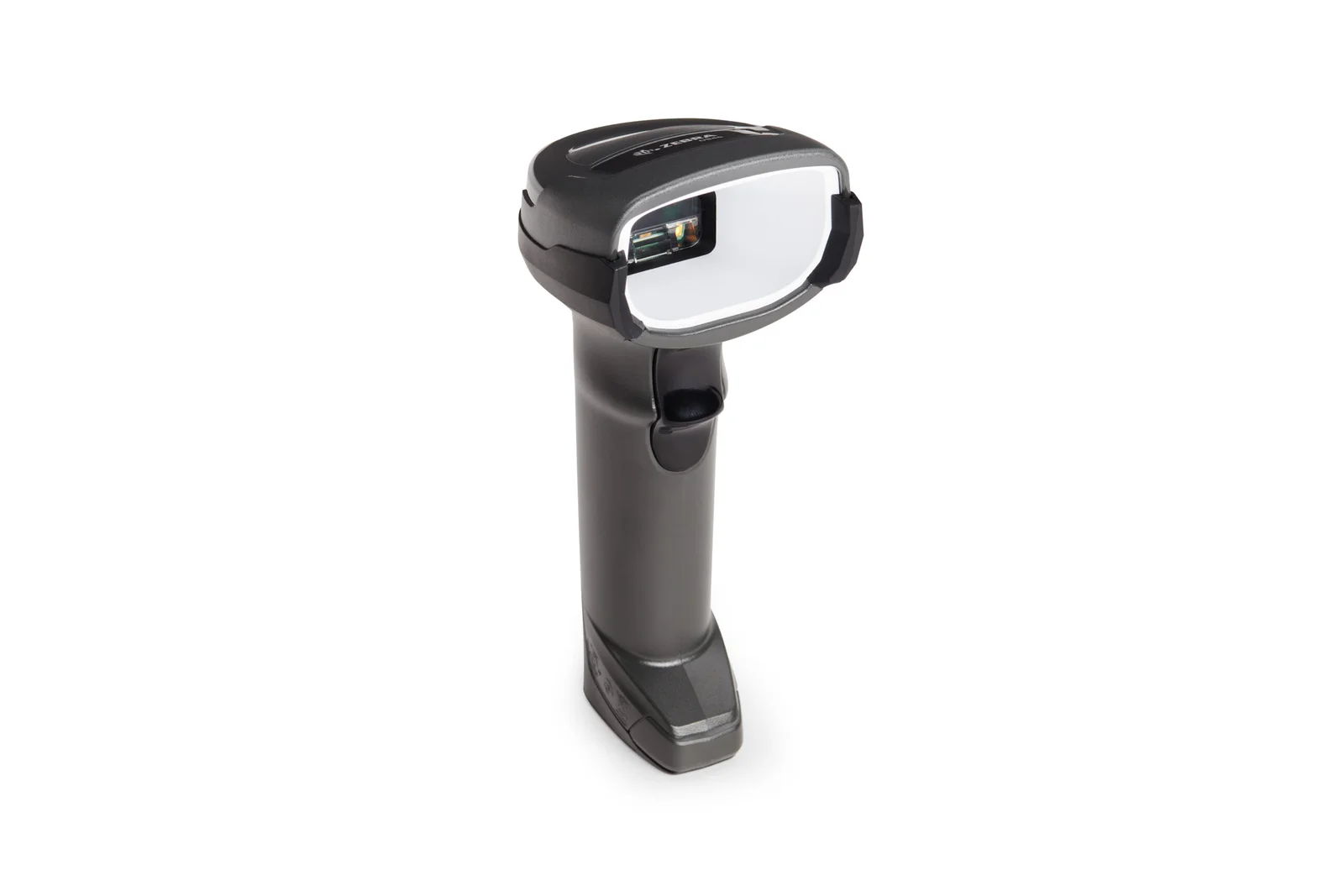

Zebra DS4678-XD Barcode Scanner

Description

The Zebra DS4678-XD is a high-performance, rugged barcode scanner designed for scanning high-density (HD) 1D and 2D barcodes in industrial and retail environments. With its advanced imaging technology, it offers exceptional performance on very small, high-density barcodes, making it ideal for applications in electronics, manufacturing, and retail where precision is critical. The DS4678-XD delivers ultra-fast scanning and superior accuracy, even on damaged or poorly printed labels, ensuring optimal efficiency in demanding environments.

Key Features:

• High-Density Barcode Scanning: Capable of scanning small barcodes down to 3 mil, making it ideal for applications that require high precision, such as electronics, healthcare, and retail.
• Omni-Directional Scanning: Offers fast and accurate scanning from any angle, boosting productivity by allowing users to scan barcodes in any orientation.
• Advanced Imaging Technology: Provides excellent performance on damaged, poorly printed, or low-contrast barcodes.
• Durability: Built to withstand drops of up to 6 feet (1.8 meters) and features an IP52 rating for resistance to dust and water, ensuring long-lasting performance in tough environments.
• Multiple Interfaces: Supports a variety of connection options including USB, RS232, and Keyboard Wedge for seamless integration with existing systems.
• Fast Scanning Speed: Scans up to 100 frames per second, enabling quick and efficient barcode reading in high-volume environments.
• Ergonomic Design: Compact and comfortable to hold, reducing user fatigue during extended use, and easy to operate with minimal training.
• Corded and Cordless Options: Available in both corded and cordless versions to suit different operational needs and preferences.

Specifications:

• Scan Engine: 1D and 2D Imager
• Resolution: 3 mil for high-density barcode scanning
• Interfaces: USB, RS232, Keyboard Wedge
• Drop Specifications: 6 feet (1.8 meters) drop to concrete
• Water and Dust Resistance: IP52 rating
• Scan Rate: Up to 100 frames per second
• Barcode Symbologies Supported: 1D (e.g., UPC, EAN, Code 39), 2D (e.g., QR Codes, DataMatrix, PDF417)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -40°F to 158°F (-40°C to 70°C)
• Weight: 6.3 oz (180g)
• Dimensions: 6.9 x 3.0 x 2.9 inches (175 x 76 x 74mm)

The Zebra DS4678-XD is ideal for industries that require high-density barcode scanning with precision and durability, such as electronics, healthcare, and retail. With its advanced features and rugged design, the DS4678-XD enhances productivity and ensures reliable performance in the most demanding environments.
